Indoor Extinguishant System Ancillaries (Model D-108-POS)
INDOOR EXTINGUISHANT SYSTEM ANCILLARIES (D-108-POS SERIES)
Designed with ease of installation in mind, Demco’s indoor system activation devices D-108-POS series are extremely suitable for open-circuit system.

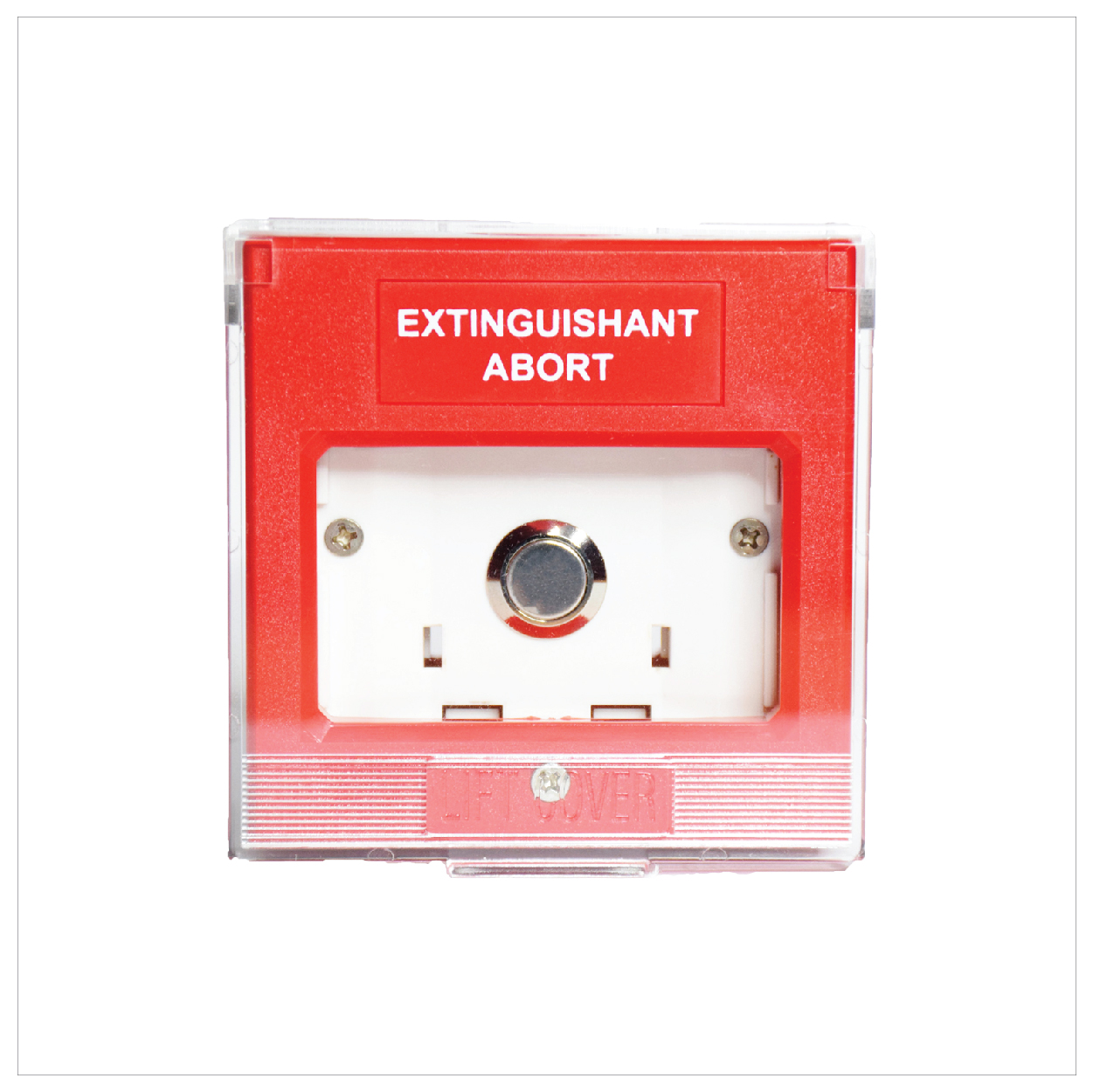

The shrouded push-button design on Extinguishant Abort Switch D-108-POS-EA and System Abort Switch D-508-EA helps prevent inadvertent operation during the cancelation of extinguishant release sequence. In addition, D-508-EA consists of corrosion-resistance stainless steel faceplate and a modular switch assembly designed to mount on a standard double gang electrical enclosure.
Resettable Extinguishant Release Call Point D-108-POS-ER’s simple ‘RESET’ mechanism consist of ABS plastic operating element that simulates break glass activation which is instantly reusable with no glass elements to break, lose or incorrectly fit when installing.

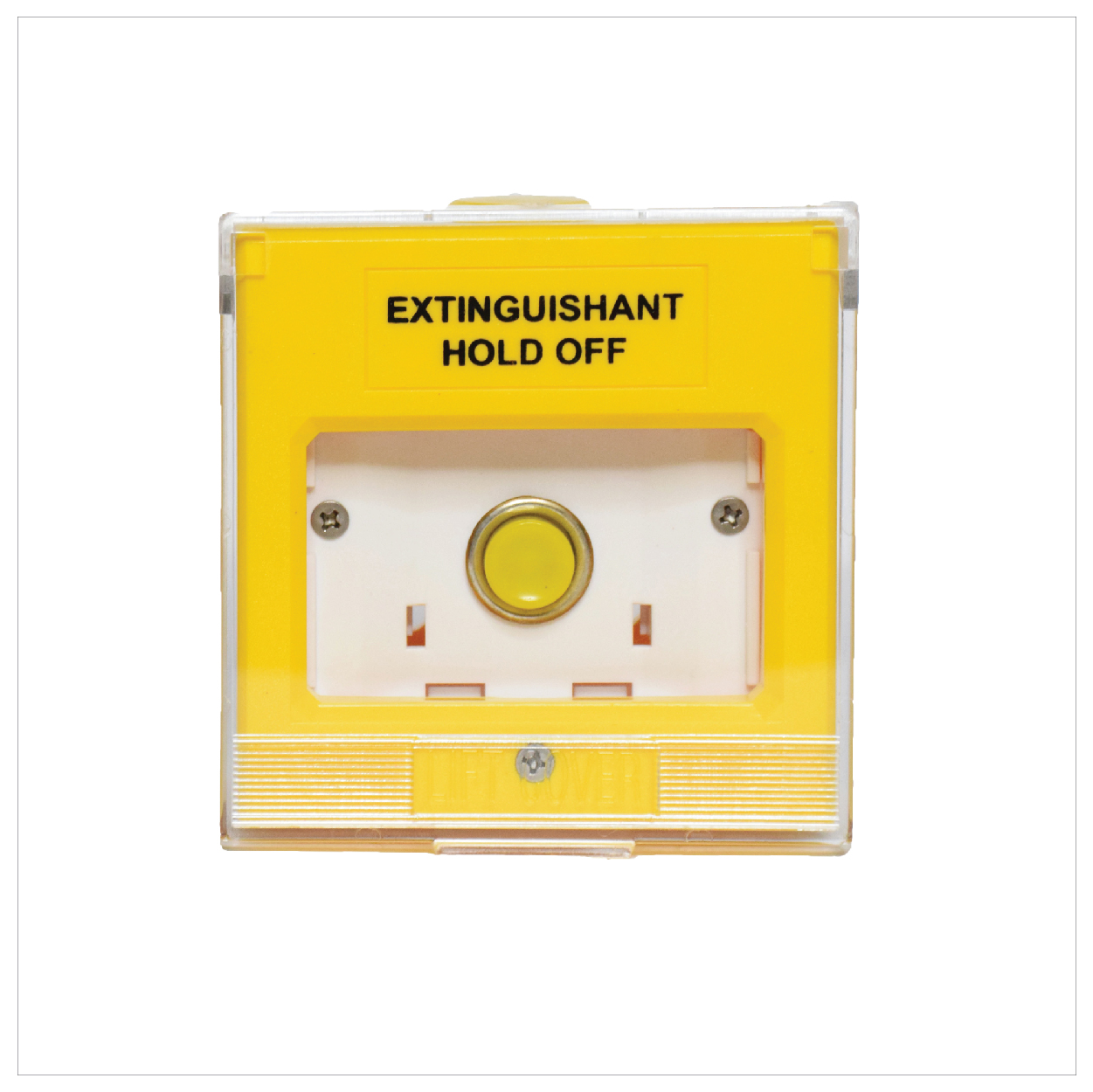

D-108-POS-EHO Extinguishant Hold Off Switch’s raised push button design is good for quick positive operation or momentary actuation when delaying the immenent suppression agent’s release.
*Applied to D-108-POS series only*
- Monitoring resistor
- Blocking Diode
- Specific language or custom imprints available on facial layout upon request.
- Casing available in different colours.
| Size (H x W x D) | 114 X 114 X 51 mm (Surface Mount) 114 X 114 X 16 mm (Flush Mount) |
| Current Ratings | 1Amp @ 240V AC |
| Net/Gross Weight | 130/150g (CP250ALB) |
| Protection Rating | IP24D |
| Size (H x W x D) | 88 x 88 X 55mm (Surface Mount) 88 X 88 X 20 mm (Flush Mount) |
| Current Ratings | 1Amp@240V AC 2Amp@24V DC |
| Net/Gross Weight | 135/160g (D-108-POS-EHO) 175/200g (D-108-POS-ER) 108/160g (D-108-POS-EA) |
| Connection | TERMINAL – MAX 2.5mm2 CABLE |
| Protection Rating | IP24D |
