Master Backup Battery

MASTER BACKUP BATTERY

Master Backup Batteries provide numerous advantages including long service life, rugged constructions, extreme temperature performance, fast recharge, high discharger rates and low internal resistance.

Available in wide range of voltage (V) and rated capacity to final voltage (AH).

  • Long service life
  • Rugged contruction
  • Extreme temperature performance
  • Fast recharge
  • High discharge rates
  • Low internal resistance
  • UL and CE certified
Battery Model
Nominal Voltage (V)
Rated Capacity to Final Voltage (AH)
Dimension (mm)
Approx. Weight (KG)
Unit Per Box (PCS)
Terminal Position
Length (L)
Width (W)
Height (H)
Height (H) Including Terminal
1.75 Volts/cell 1.7V/c 1.3V/c
20 HR 10 HR 5 HR 1 HR
MT 6V1.3 6 1.3 1.2 1.1 0.73 97±1 24±1 51±2 56±2 0.3 20 (C)
MT 6V3.2 6 3.2 3 2.72 1.67 123±1 32±1 60±2 66±2 0.62 20 (C)
MT 6V3.3 6 3.3 3.1 2.8 1.73 134±1 34±1 60±2 66±2 0.66 20 (C)
MT 6V4 6 4 3.8 3.4 2.4 70±1 47±1 101±2 107±2 0.68 20 (A)
MT 6V12 6 12 11.1 9.5 6.3 151±1 50±1 94±2 100±2 1.64 10 (C)
MT 8V3.3 8 3.3 3.1 2.8 1.73 67±1 46±1 91±2 91±2 0.76 20 (G)
MT 12V1.3 12 1.3 1.2 1.1 0.73 97±1 43±1 52±2 57±2 0.57 20 (F)
MT 12V2.2 12 2.2 2.1 1.87 1.16 178±1 34±1 60±2 66±2 0.91 20 (C)
MT 12V3.3 12 3.3 3.1 2.8 1.73 134±1 67±1 60±2 66±2 1.23 10 (E)
MT 12V4 12 4 3.8 3.4 2.4 90±1 70±1 101±2 106±2 1.34 10 (C)
MT 12V7 12 7 6.7 5.95 4 151±1 65±1 95±2 101±2 2.05 8 (E)
MT 12V12 12 12 11.4 9.5 6.3 151±1 99±1 96±2 100±2 3.51 4 (E)
MT 12V18 12 18 17.2 15.2 10.8 181±1 76±1 167±2 167±2 5.37 2 (D)
MT 12V26 12 26 23.8 21.6 15.1 166±1 175±1 126±2 126±2 7.75 1 (D)
MT 12V40 12 40 38 34 24 197±1 165±1 170±2 170±2 12.4 1 (D)



Battery Model
Nominal Voltage (V)
Rated Capacity to Final Voltage (AH)
Dimension (mm)
Approx. Weight (KG)
Unit Per Box (PCS)
Terminal Position
Length (L)
Width (W)
Height (H)
Height (H) Including Terminal
If Terminal Voltage s 10.5V
20 HR 10 HR 5 HR 1 HR
MT 12V50 12 57.1 54.3 48.6 33.6 263±3 172±3 221±2 222±2 19.3 1 (C)
MT 12V60 12 68.6 65.1 58.3 40.3 263±3 172±3 221±2 222±2 19.5 1 (C)

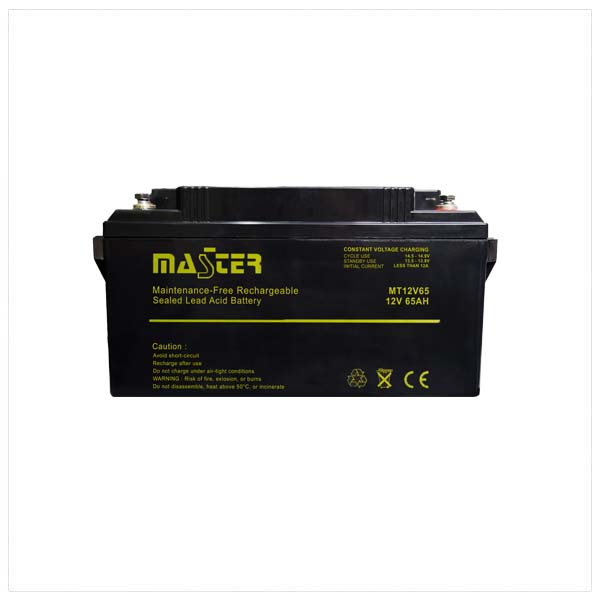

MT 12V65 12 69 66.2 60.7 42.3 350±3 167±3 178±2 178±2 20.3 1 (C)
MT 12V70 12 80 76 68 47 303±3 173±3 224±2 225±2 21 1 (C)
MT 12V100 12 95.7 93.8 78.2 52.4 415±3 173±3 224±2 225±2 29.6 1 (C)
MT 12V150 12 143.6 140.7 117.3 78.6 495±3 205±3 209±2 242±2 43.2 1 (F)
MT 12V200 12 191.4 187.6 156.4 104.8 497±3 258±3 209±2 242±2 59.2 1 (F)

Specifications are subject to change without prior notice.
